Gate and fence design: matching steel styles for your home
Welded at your house to your lot.

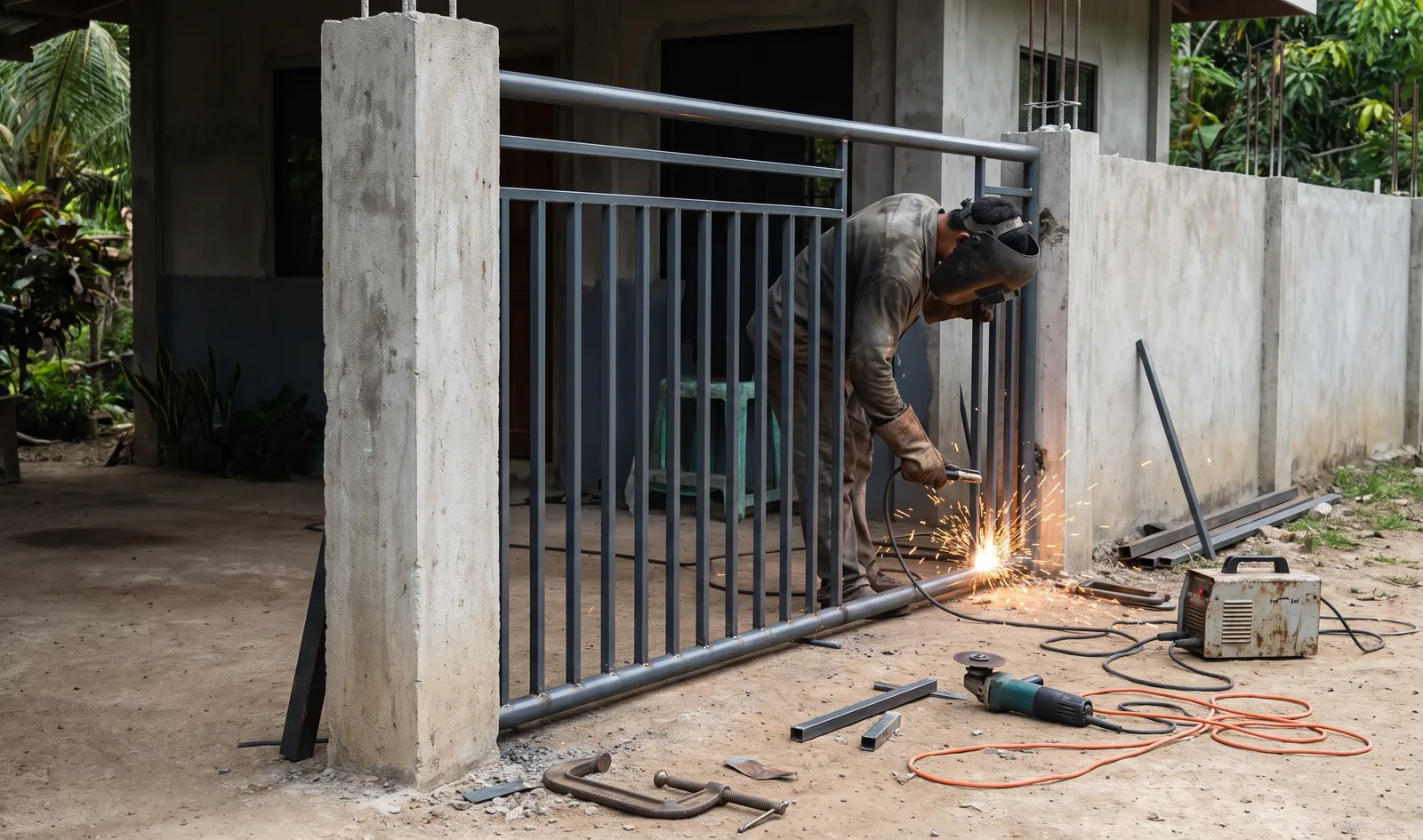

Get QuoteA good gate and fence design uses one style for both: the same bars, slats or panels, the same colour and the same top line. Most homes use a low concrete wall with a steel fence on top and a gate between pillars. A fence up to 1.80 m needs only an accessory permit (PD 1096 IRR, Sec. 301). Our welder comes to your house in southwest Cebu and welds it there — see our gate welding service.
Three styles for gate and fence
Pattern panels
Decorative cut-out steel.
Classic scrolls
Arched top, spear points.
Fence and gate rules
| Rule | PD 1096 IRR |
|---|---|
| Fence up to 1.80 m | Accessory permit (Sec. 301) |
| Fence over 1.80 m | Accessory building, Group J (Sec. 701) — building permit |
| Repairing a perimeter fence | No building permit (Sec. 301) |
| Gate opening | Under 2.40 m high: must not project beyond the property line when opened (Sec. 1007) |
| Corner lot | Solid fence on a corner where the street is under 3.60 m wide: corner cut off (Sec. 1008) |
National Building Code of the Philippines, Revised IRR. Your municipality or subdivision may add its own rules — ask before you build.
Steel in 1 m of fence, 1.2 m high
| Infill | Infill steel | With top and bottom rail |
|---|---|---|
| Square bar 12 mm | ≈10.9 kg | ≈14.3 kg |
| Square tube 25 × 25 × 1.2 mm | ≈8.6 kg | ≈12.0 kg |
| Flat bar 25 × 3 mm | ≈5.7 kg | ≈9.1 kg |
Arithmetic example, not a quote: rails 38 × 38 × 1.5 mm tube, 2.0 m ≈ 3.4 kg; 8 bars at 120 mm centres, 1.2 m each. Steel density 7,850 kg/m³ (Engineering ToolBox).
Designing gate and fence together
One style
The same infill on the gate, fence and pedestrian gate.
One top line
Gate top level with the fence, or a little higher at the pillars.
Privacy
Slats or sheet block the view; bars keep it open and let air through.
Pedestrian gate
A small gate beside the car gate, in the same design.
Height, permit and rust
Up to 1.80 m, a fence needs an accessory permit; a taller fence is an accessory building (Group J) and needs a building permit (PD 1096 IRR, Sec. 301 and 701; full text). A swing gate on the street opens into your yard (Sec. 1007).
Near the sea, steel rusts faster: ISO 9223 puts sites within one kilometre of the ocean in corrosion class C4 and those within a few hundred metres in C5 (HDGASA, based on ISO 9223). In Moalboal, Badian or Alcantara, ask for primer and top coat, or galvanized steel.
Gate styles: tubular gate designs and simple, low-cost gate designs. How it opens: sliding vs swing gate. Matching window grills and stair railings.
Send the length of the fence, the gate opening and a photo. Get a gate and fence quote — we measure, weld and install in Ronda and southwest Cebu.
Questions
How high can a fence be without a building permit?
Up to 1.80 m needs only an accessory permit (PD 1096 IRR, Sec. 301). Higher fences need a building permit.
Should the gate and fence have the same design?
Usually yes — the same infill and colour make the front of the house look like one piece.
Which fence design gives the most privacy?
Horizontal slats close together or steel sheet. Bars keep the view open.
How heavy is a steel fence?
About 14 kg per metre for a 1.2 m fence with 12 mm square bars and tube rails (arithmetic example above).
Can you weld a fence on top of my wall?
Yes. Send the wall length and a photo for a quote.
